Emergency Replacement Alloy Steel Shaft for the Steel Mill Industry

01. Challenge

A steel coil coating industry client called Aeromet with an emergency: a recoiler arbor shaft unexpectedly broke while in service, and it needed to be replaced in a hurry so that the client could minimize downtime.

side view of an alloy steel shaft

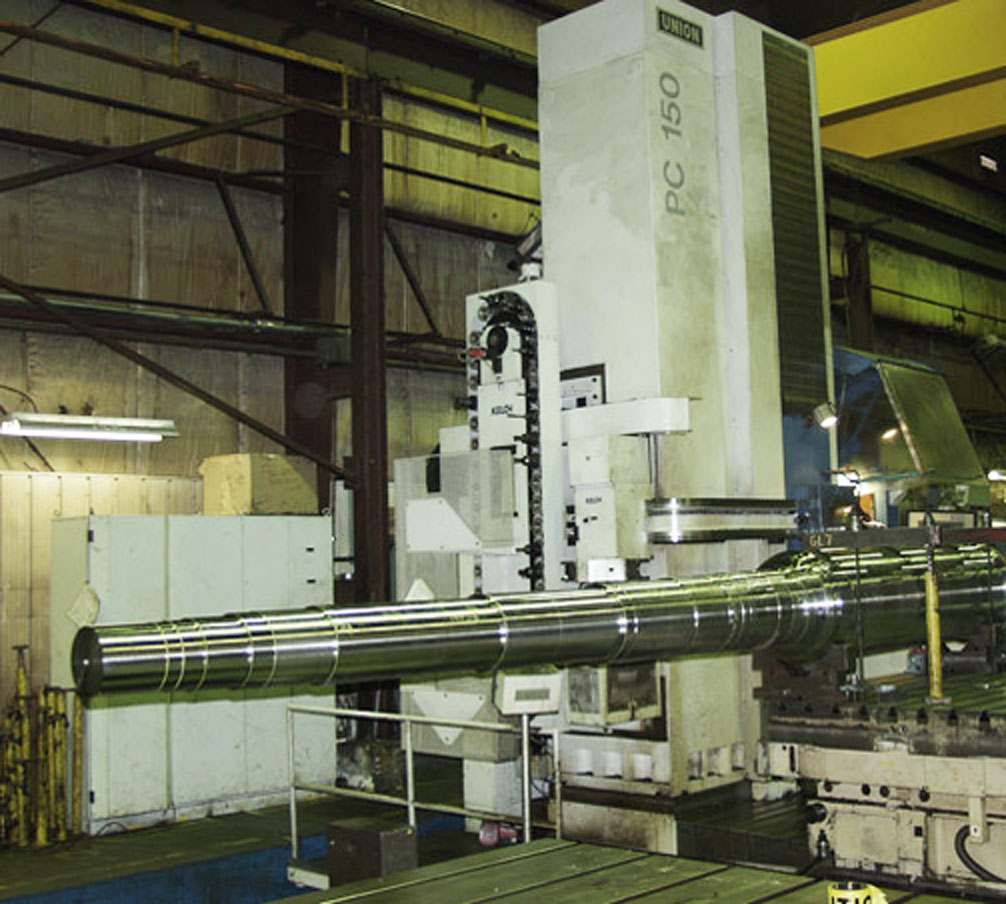

cnc machined tension reel / steel shaft

02. Approach

Aeromet worked quickly to accommodate the client and get their equipment up and running. To fabricate this recoiler arbor shaft, our engineers used CAD/CAM software to design the shaft and we also created a solid model. We machined 4340 heat treated steel forging on our Ryazan CNC lathe and Union Floor Bar Milling Machine to produce the shaft that was 15” in diameter, 156” long and 5,000 lbs., with a precision tolerance of .001”.The shaft was completed with a smooth 32 RMS finish.

03. Results

Aeromet is well suited to handle all emergencies and we were able to provide this client with a high quality and quick emergency replacement. We fulfilled all of our client’s requirements and met ISO 9001:2015 standards.

To learn more about this emergency replacement alloy steel shaft project, contact us directly.

Product Description

Recoiler Arbor Shaft Emergency Replacement

CNC Machining Capabilities Applied/Processes

Primary: Cad/Cam/Solid Model, Sawing, CNC Machining
Secondary: Inspection, Assembly, Packaging

Equipment Used to Manufacture Part

MasterCam, Ryazan CNC Lathe, Union Floor Type Boring Mill

Overall Part Dimensions

15" Diameter x 156" Long

Tightest Tolerances

+/- 0.001

Material Used

4340 Heat treated steel forging

Material Finish

32Ra on outside diameter

In process testing/inspection performed

Extensive post production testing and extensive in process inspection of components

Estimated Part Weight

5,000 lbs


Steel Processing - Pickling

Delivery Location

Northwest Indiana Steel Producer

Standards Met

ISO 9001:2015

Product Name

Arbor Shaft
